• VESA compatible – 75mm & 100mm VESA adapters included
  • Maximum weight load: 10KG (22lbs)
  • The arms could fold up to occupy just 170mm of space
  • Monitor tilting range: Up 60° / Down 45°
  • The vertical range of the arm: 270mm
  • The horizontal range of the arm: 301mm
  • Monitor 360° Clock-Rotation
  • Rotates 360° at four joints
  • With cable management
  • Packing Dimensions: L49 x W15 x H 8.0 cm
  • Net Weight: 2kg;Gross Weight: 2.1kg

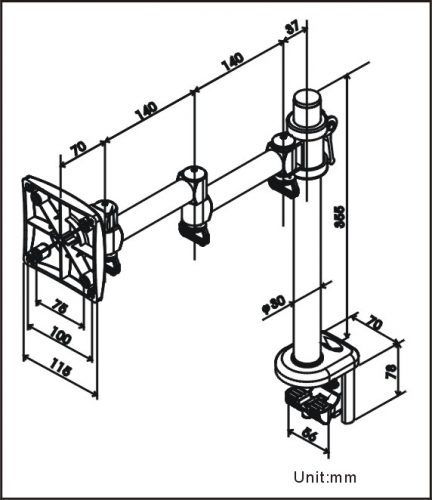

5082C4 dimension

Desk clamp mount


Through desk mount

Product Literature

Installation Manual
